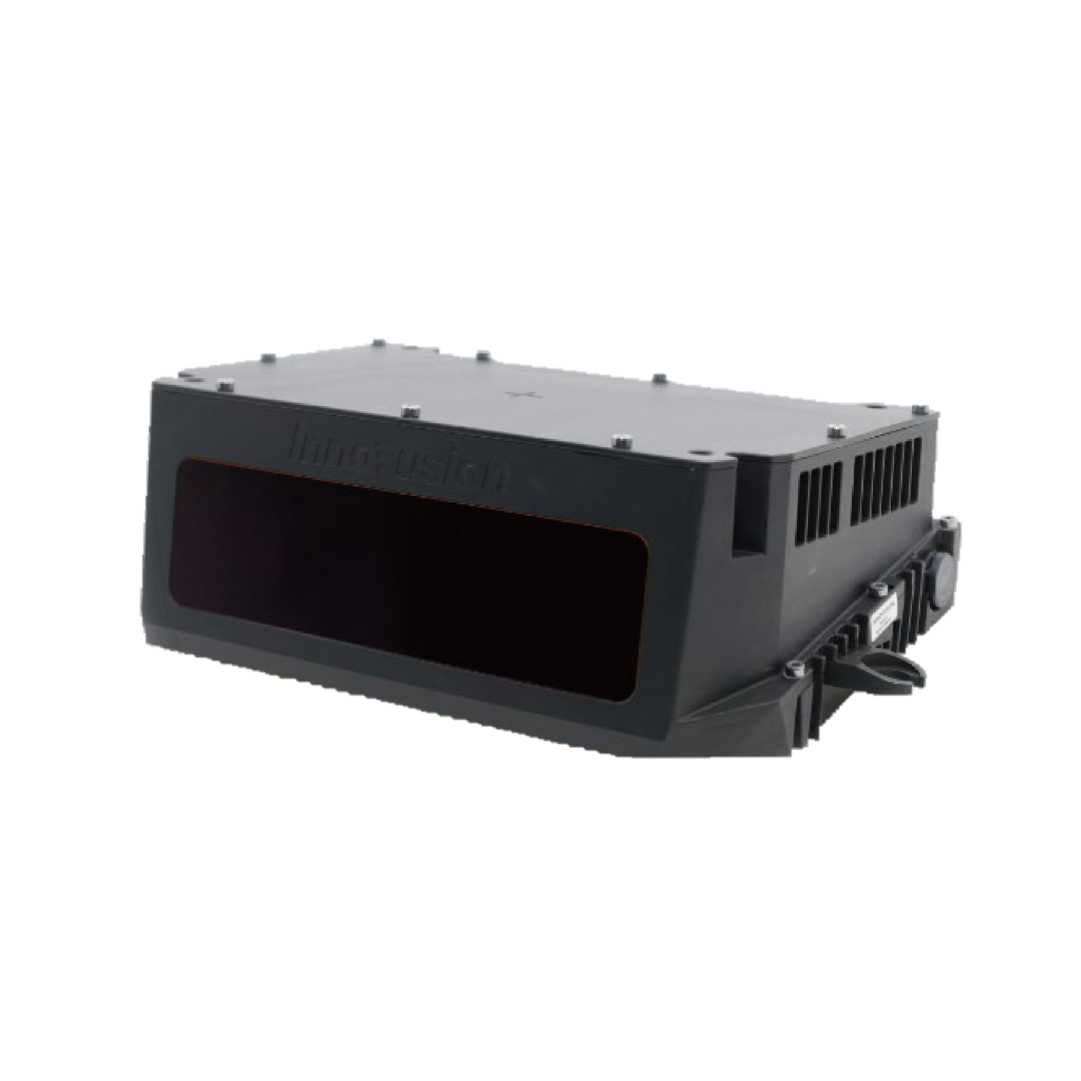

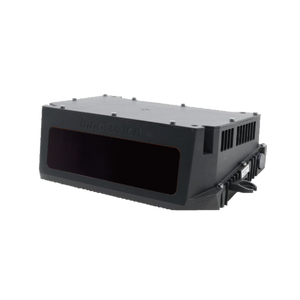

ULTRA-LONG RANGE LIDAR SENSOR
Image-grade ultra-long range LiDAR designed for smart transportation scenarios like V2X, smart highway and smart railway, etc. With maximum detection range of 500 meters and ultra-high resolution of 0.09°×0.08°. It can effectively perceive small obstacles at a long distance.
Feature
- Highly integrated design, easy deployment and high maintenance efficiency.
- Image-grade resolution with wide FOV, as well as max detection range of 500m, applicable to different scenarios.
-
1550nm laser wavelength, eye-safe.
Specifications
LiDAR Performance
- Laser Wavelength: 1550 nm
- FOV (H×V): 120° × 25°
- Angular Resolution (H×V): 0.09° × 0.08°
- Vertical Scanning Lines: 1500 - 2000 lines/sec
- Detection Range (Maximum): 500 m (10% @ 250 m)
- Detection Range (Minimum): 1.5 m
- Detection Range Resolution: 0.5 cm
- Frame Rate: 10 FPS
- Laser Safety Class: Class 1 (IEC 60825-1:2014)
Operational / Electrical
- Operating Voltage: 18 to 28 V DC
- Operating Temperature: -40 °C to +85 °C
- Power: 24 V / 34.8 W
- Ingress Protection: IP67
Mechanical
- Dimensions (H × W × D): 83.8 mm × 268 mm × 172 mm
- Weight: 2300 g
