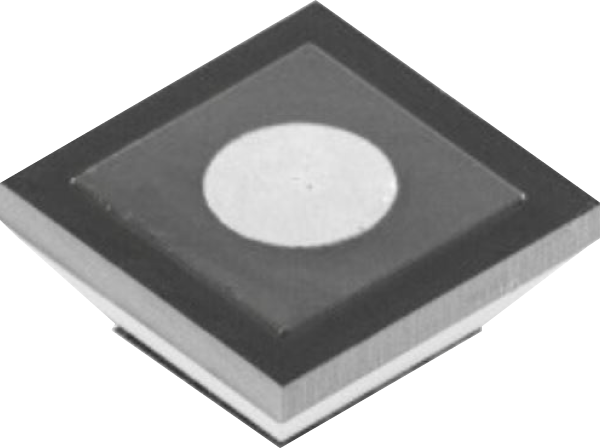

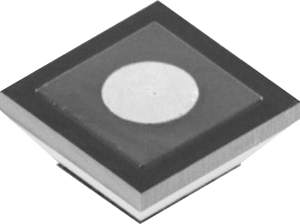

UT190 50um Gen-3

FEATURES:

• Small chip: 190 x 190 x 50 μm
• UT LED performance
  • 450 & 460 nm: 12 mW min.
  • 470 nm: 10 mW min.
  • 527 nm: 3.0 mW min.
• Low forward voltage: 2.9 V typical at 5 mA
• Single wire bond structure
• Class 2 ESD rating
