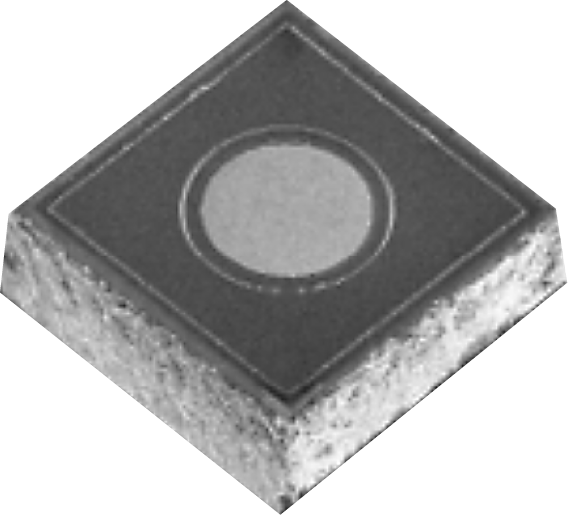

EZ280-p

FEATURES:

• Lambertian Radiation Pattern
• Vertically conductive (one wire bond)
• Anode-up design (p-pad up)
• Binned @20mA
• Radiant Flux (RF) performance:
  • 450 nm – 36+ mW
  • 460 nm – 34+ mW
  • 470 nm – 30+ mW
  • 527 nm – 16+ mW
• Typical Forward Voltage (Vf) – 2.9 V
• 2kV Class 2 ESD Rating
• Backside Metal:
  • -AuSn for use with Flux Eutectic Attach, Conductive Adhesives, Solder Paste & Solder Preforms
