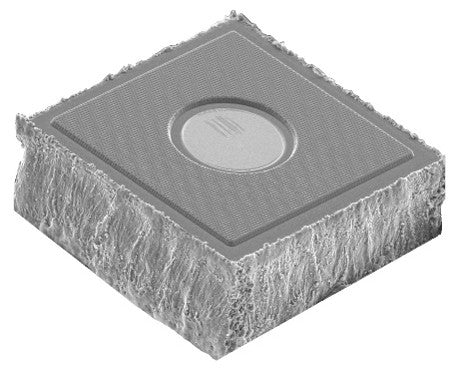

SD280

FEATURES

• Vertically conductive (one wire bond)
• Anode-up design (p-pad up)
• RF Performance @10 mA
  • 460 nm – 1.0-9.0 mW
  • 470 nm – 1.0-9.0 mW
  • 527 nm – 0.8-7.0 mW
• Typical Forward Voltage:
  • 2.7 V Typical @700 mA
• Backside Metal:
  • Au backside for use with Conductive Adhesives, Solder Paste & Solder Preforms
• 2kV Class 2 ESD Rating
